產品詳情

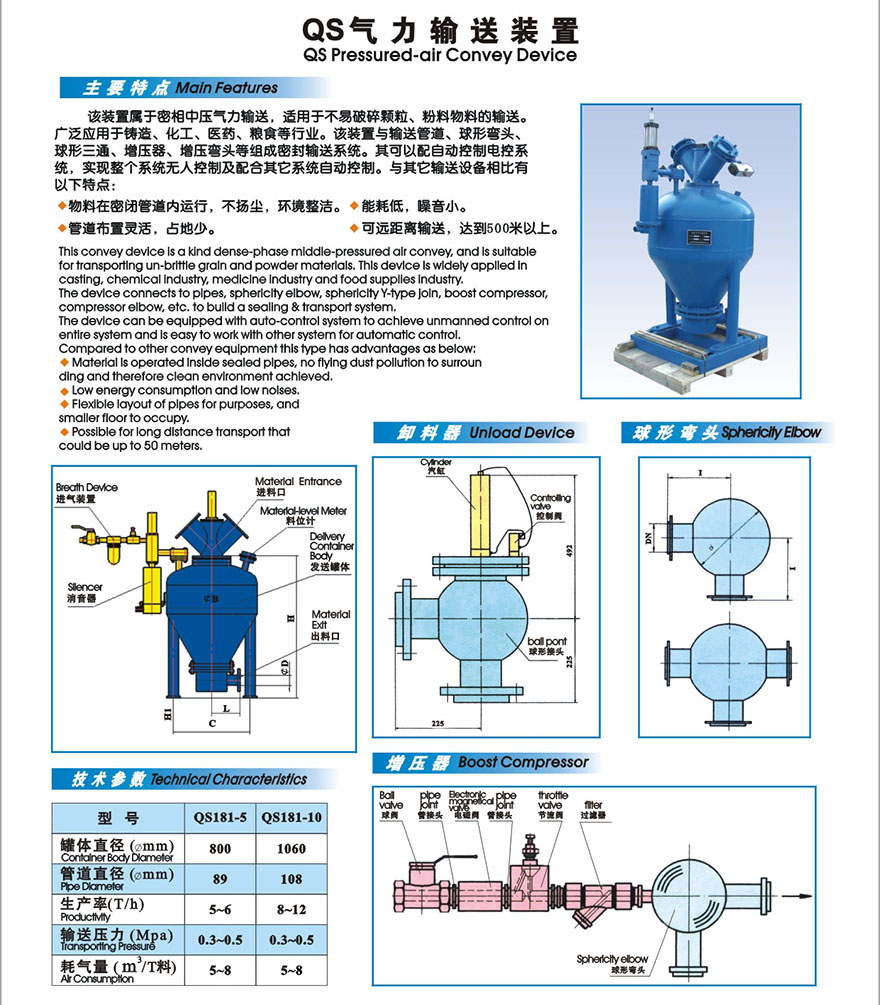

ZXQS氣力輸送裝置(ZXQS Pneumatic conveyer)
該裝置屬于密相中壓氣力輸送，實用于不易破碎顆粒、粉料物料的輸送。廣
泛應用于鑄造、化工、醫(yī)藥、糧食等行業(yè)。該裝置與輸送管道、球形彎頭、球形三通、增壓器、增壓彎頭等組成一密閉輸送系統。其可以配自動控制電控系統，實現整個系統無人控制及配合其它系統自動控制。
This equipment belongs to dense-phase pneumatic conveying, and it is practical to the conveying of some grain that is hard to break. It is widely used in foundry, chemical, medicine, and grain industries. The equipment as well as pipe laying, glob elbow, glob conductor, pressure-increased machine、pressure-increased elbow, etc, forms an airtight convey system. It can be collocated with electronic auto control system to realize auto control, (no supervision).
與其它輸送設備相比有以下特點：
Compared with other equipment, its characteristics are as follows:
l 物料在密閉管道內運行，不揚塵環(huán)境整潔。
l Material working in the airtight pipe, environmental friendly.
l 能耗低，噪音小。
l Low consumption, little noise.
l 管道布置靈活，站地少。
l Collocation changeable, less impropriation.
l 可遠距離輸送，達到500米以上。
l Long distance convey, more than 500m.
ZXQS氣力輸送裝置參數：(Technical references:)
型 號
(Type) |
罐體直徑（φmm） |
管道直徑（φmm） |
生產率（T/h） |
輸送壓力（Mpa） |
耗氣量（m3/T料） |
|
ZXQS181-5 |
800 |
89 |
5-6 |
0.3-0.5 |
5-8 |
|
ZXQS181-10 |
1060 |
108 |
8-12 |
0.3-0.5 |
5-8 |

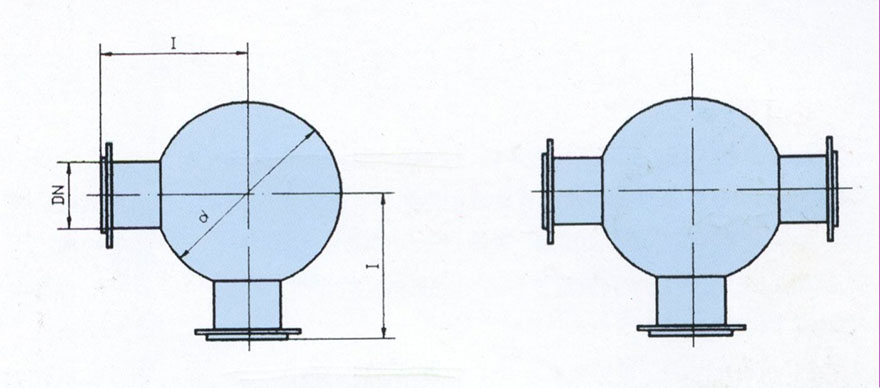

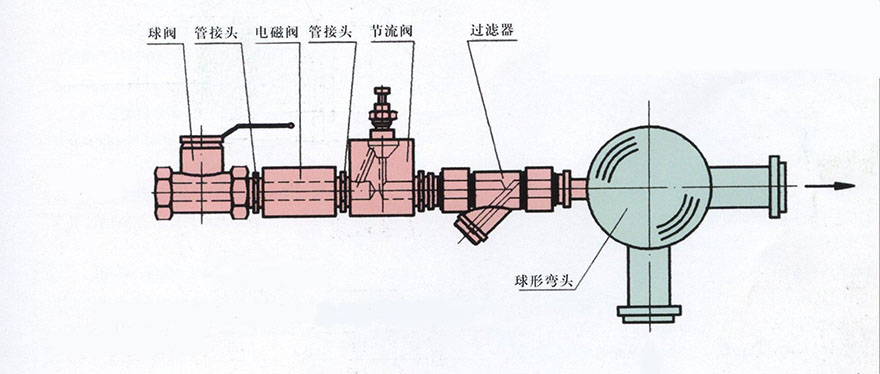

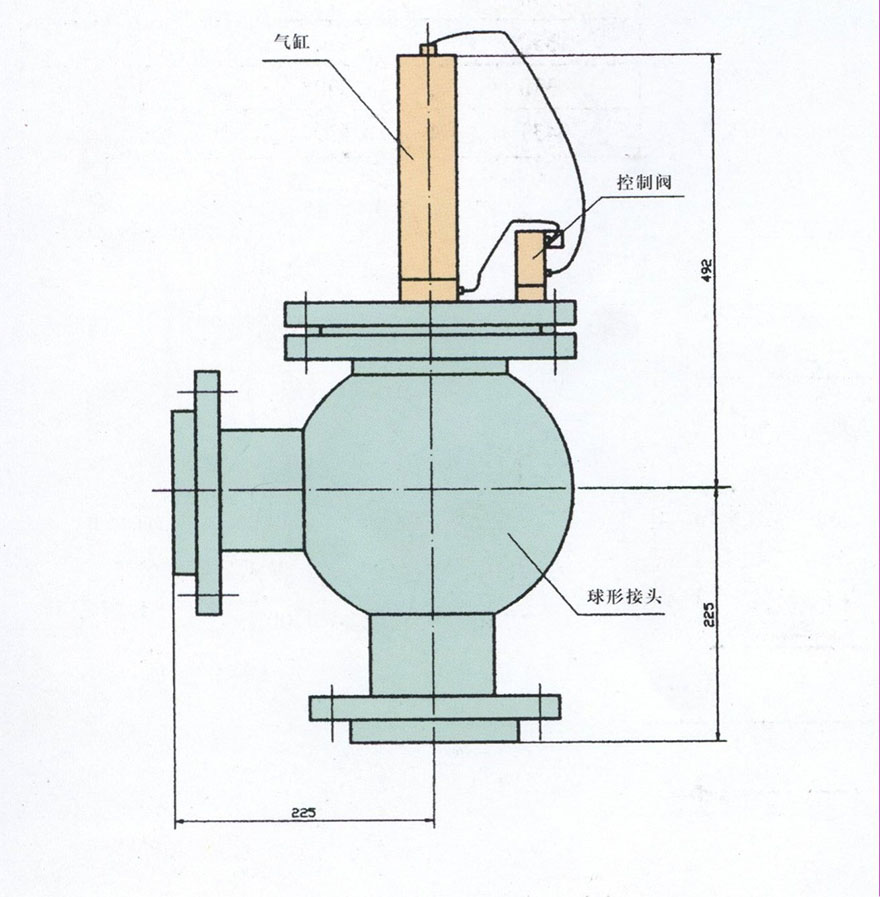

彎頭 增壓彎頭 卸料器
